TM-50 Manual Taping Machine Series
Large, small, or difficult-to-place parts are easy to tape with V-TEK's TM-50 Series. The microprocessor-controlled sealer and stepper motor drive assures precise handling of all taping parameters. Several advance speeds are selectable to accommodate problem parts and to minimize part jumping. The innovative setup and change-over design allow any taping operator to change over carrier and cover tapes in minutes. Also available in XL and OEM models. The TM-50 OEM is a slim line taping module that can be easily integrated to existing pick-and-place systems where placement of small parts or electrical components into tape and reel packaging is necessary.
-
Dimensions: H 15" (38cm) x W 55" (140cm) x D 20.5" (52cm)
Power required: 120/230 VAC, 50/60 Hz, Compressed air 80 PSI
Accommodates 8-72mm wide carrier tape
-
Adjustable track assembly for tape widths up to 72mm (XL – 120mm)
Independently controlled seal temperature for each side of the cover tape
Dual stage, fully adjustable heat and PSA sealer assembly
User-friendly software assures ease of set up and operation
Software controlled advance movement of carrier tape (2mm - 144mm pitch)
-
Vacuum pen, Empty pocket detector, Full sensor package, Vision inspection for pin 1 and mark verification, Software Package
As an equipment manufacturer, V-TEK collaborates with major tape and reel companies to ensure their products are compatible with ours. As part of a refined supply chain, V-TEK is your single source of fully qualified consumable products.
PC 250+ Manual Parts Counter
The PC-250+ Manual Parts Counter is designed for counting devices in tape and reel, safely and quickly. Parts are handled without kinking or bending the tape. The design of the PC-250+ allows for bidirectional parts counting, subtracting when the direction of the tape travel is reversed. It also provides an excellent quality inspection platform. While counting, each pocket can be checked for proper part placement and tape adhesion.
-
Standard counter accepts reel widths from 8-56mm, includes 2mm pitch
Dedicated 4mm tape width counter also available
Minimum part sizes: 2mm x 2mm or 0805 (operator/settings dependent)
Accepts 7" and 13" reel diameters with standard arms and 22" reels when optional extenders are used
Dimensions: H 12" (30cm) x W 30" (76cm) x D 16" (40cm), Weight 14.5lbs (6.4 kg)
Power required: 120/230 VAC, 50/60 Hz, Four AA batteries allow portability
-
Bi-directional counting of surface mount parts in tape and reel
Accurate counting of any device in embossed or punched carrier tape—black or clear
Three button operator interface simplifies pitch setting
Platform for quality inspection
Dual hand crank for ease of operation, battery option standard
-
Reel extenders
Digital Microscope

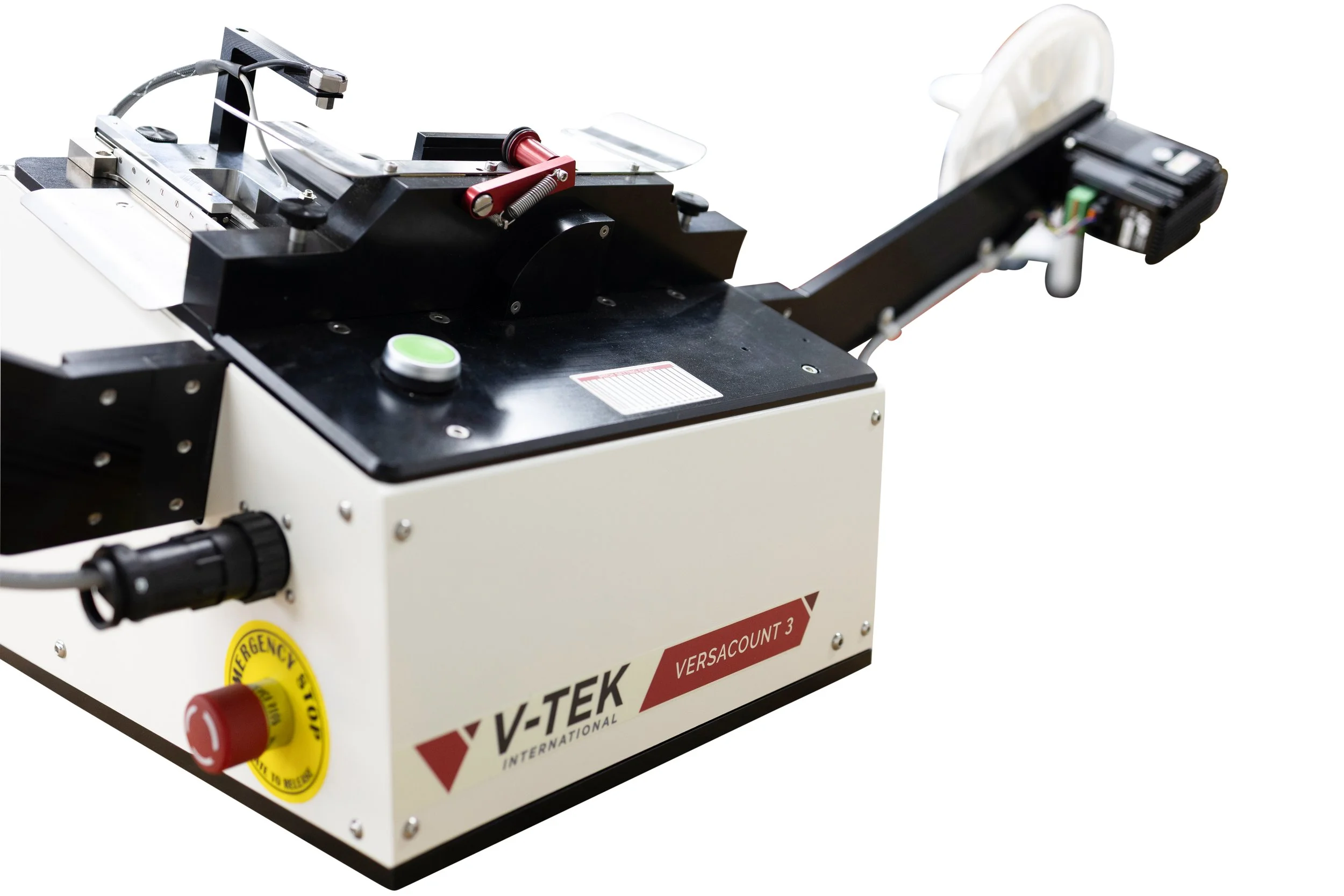

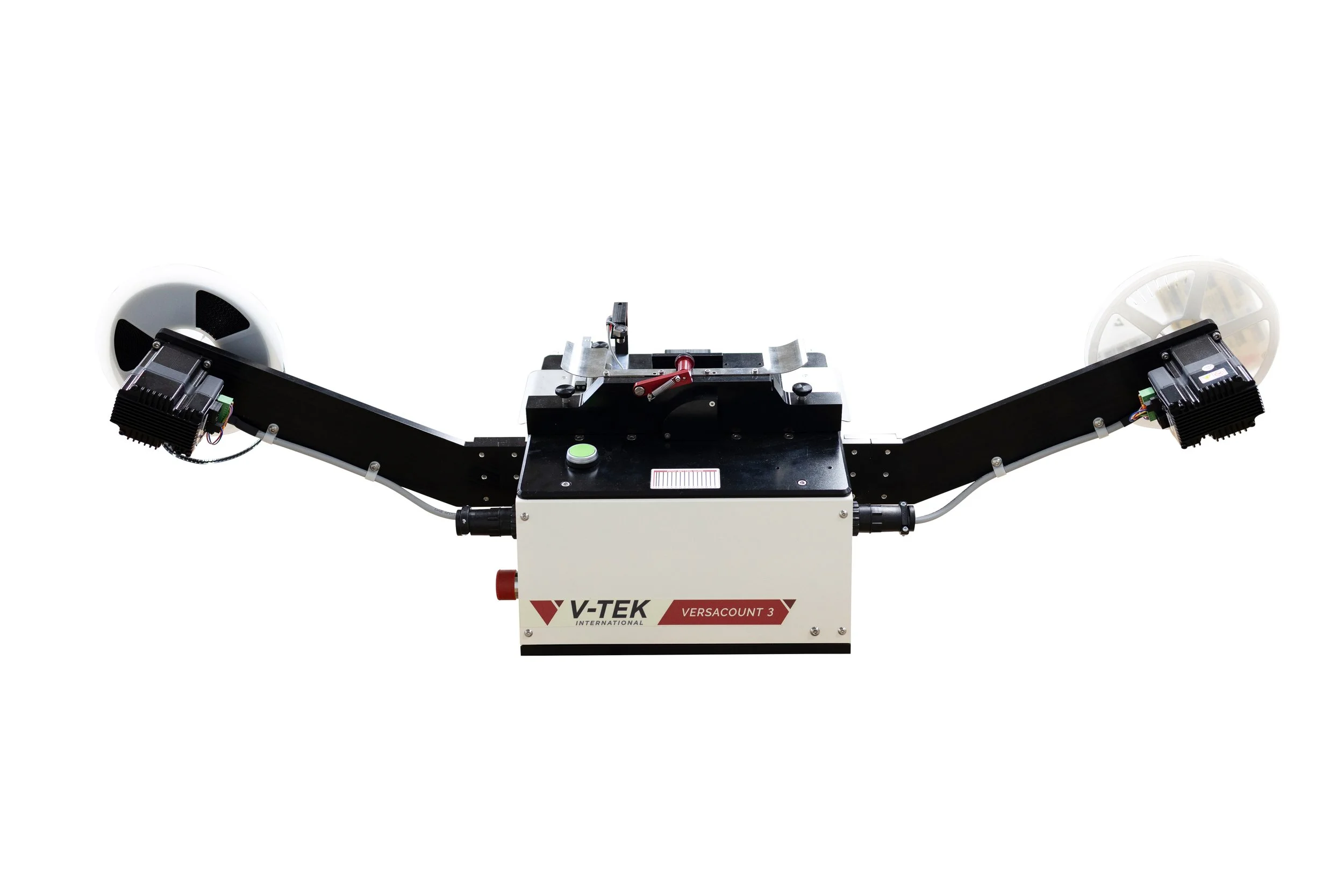

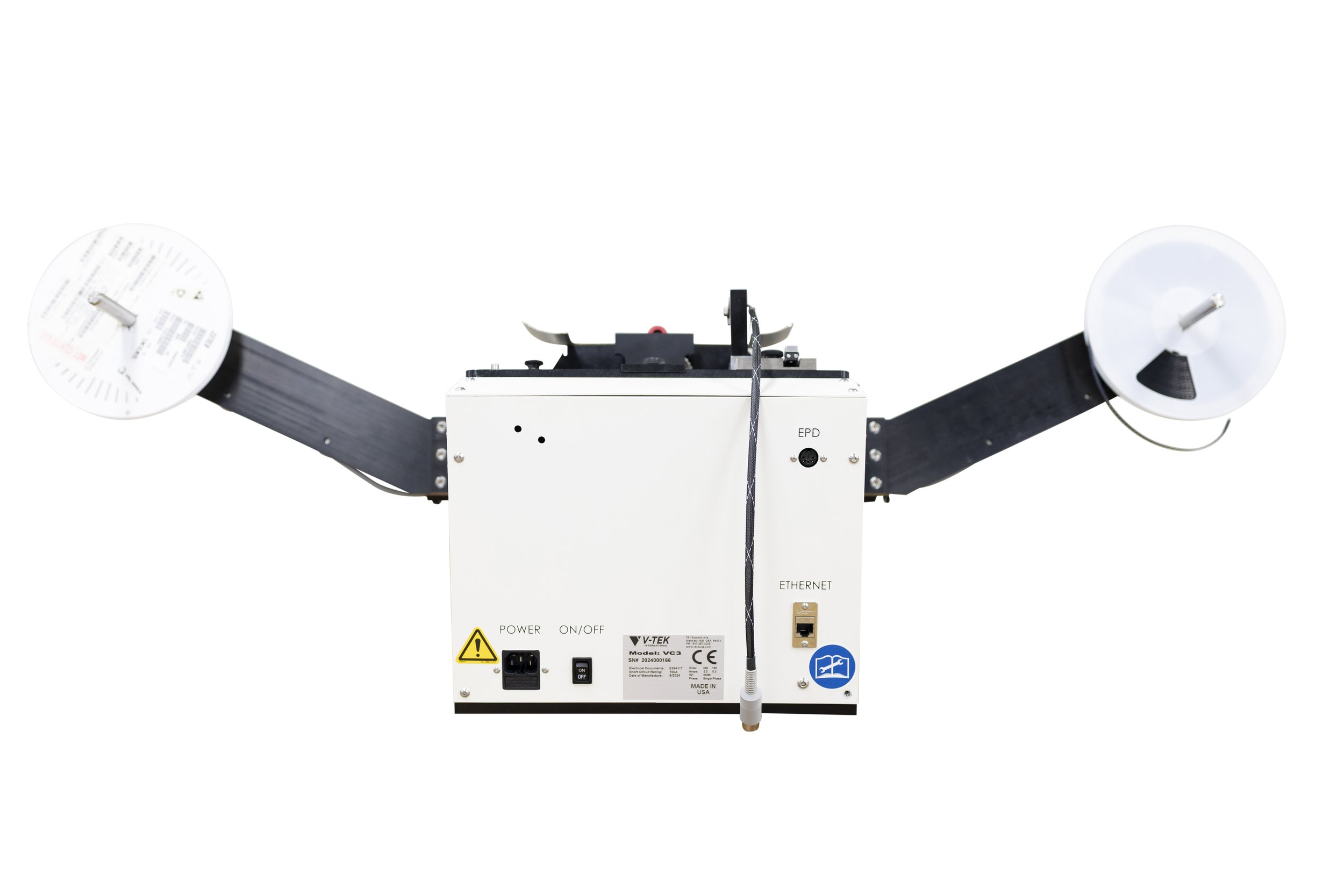

Versacount 3 Motorized Parts Counter
The Versacount 3 is designed to provide a 100% accurate count—forward or backward. It can be programmed to count a specific number of parts and is operational with surface mount devices, as well as axial and radial taped components with the optional module. The optional empty pocket detector detects and displays empties along with the actual number of parts.
-
Accepts reel widths from 8-120mm, includes 2-104mm pitch
Minimum part sizes: 2mm x 2mm or 0805 (operator/settings dependent) Device Size Chart
Accepts 7" and 13" reel diameters with standard arms and 22" reels when optional extenders are used
Dimensions: H 13" (33cm) x W 36" (92cm) x D 11.5" (29cm), Weight 26lbs (12 kg)
Power required: 120/230 VAC, 50/60 Hz
-
Fast changeover to axial and radial taped components
Bi-directional counting
Can be programmed to count a specific number of parts
User friendly operator interface can display all standard and optional measurements
-
Riser for 22" diameter reel
Empty pocket detector (EPD)
Axial / Radial module
Thermal label printer with barcode
PC Software communications
Digital Microscope
TS-50 & TS-100 Tape Splicers
The TS-50 and TS-100 Tape Splicers ensure you have the correct number of parts on a reel. Whether kitting for assembly process or combining partial reels, the safe and simple-to-use splicer provides a reliable solution for splicing 8-24mm tape. Available in TS-50 and TS-100 models.
-
Universal splice tape for 8-24mm carrier and cover tape
Minimum part sizes: 2mm x 2mm or 0805 (operator/settings dependent) Device Size Chart
Both options includes 100 pieces of splicing tape and scissors
TS-50 Dimensions: H 2" (5cm) x W 8" (20cm) x D 4" (10cm), Weight 4lbs (1.8 kg)
TS-100 Dimensions: H 2" (5cm) x W 10" (26cm) x D 8" (20cm), Weight 8lbs (3.6 kg)
-
Portable, lightweight, and easy to use
Splices EIA standard embossed and paper carrier tape
Low maintenance, no power required
Splices tape between and through sprocket holes
PT-55 Peel Force Tester
V-TEK Peel Force Testers are built to test, confirm, and record proper sealing strength of cover tape to carrier tape. This ensures parts are secure and protected, yet will release at the designated force. The PT-55 Peel Force Tester incorporates new technology and performance features to make set up easy, maintenance minimal, and calibration accurate. The lightweight design can accommodate 8-120mm tape widths and operates at peel speeds of 120mm/min or 300mm/min.
The PT-55 can be ordered with an optional Windows 11 laptop computer/security package to allow accurate control, set up, and recording. Using your own computer, V-TEK provides the software package required to operate.
-
Handles all tape widths 8-120mm and 35.5mm deep pocket in both punched or embossed carrier
Minimum part sizes: 2mm x 2mm or 0805 (operator/settings dependent) Device Size Chart
Standard EIA peel speed of 120mm/min or 300mm/min
Sampling rate: 100 times per second
CE compliant
Dimensions: H 5" (13cm) x W 22" (56cm) x D 10" (25cm), Weight 22lbs (10 kg)
Power required: 120/230 VAC, 50/60 Hz
-
Automated home and calibration positioning
USB communications interface
Easy design allows for operator calibration in minutes
Measures in grams or Newtons
Customizable data fields
-
Windows 11 laptop with security bracket and software for controls
